Wanted a schematic

[Dan Walker]

I have a DeForest Crosley console radio and the model is ”type 1921”.
The year is 1934-35
I found a schematic on my RC disk but it is unreadable.
Do one of you guys have a schematic that is readable
Thanks
Dan in Calgary

[patrick dufresne]

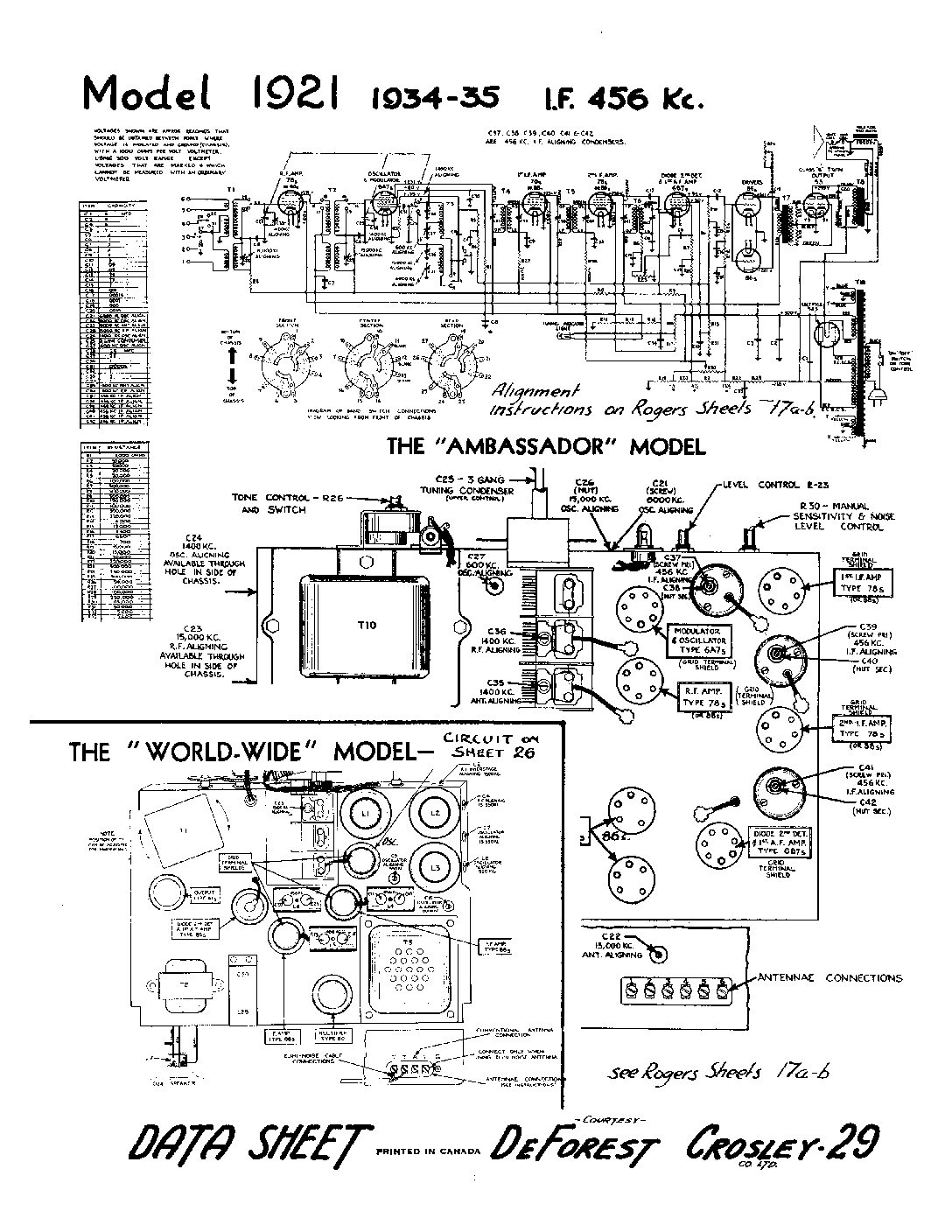

i have this one , i will try to get a better one.

Attachments:

1.

   DE_FOREST_CROSLEY_1921.pdf


[patrick dufresne]

and this one

[Dan Walker]

Thanks Patrick; It is good to see that you are still involved in the radios.
That schematic is a bit better, but your second post did not have any attachment.
I know that some of these old schematics are hard to get .
Thanks
Dan in Calgary

[Dan Walker]

I ordered one from Just radios I didn’t know that they had one. I just hope I can read it.
Dan in Calgary

[patrick dufresne]

the second is more then 2 MG, that’s why it did not pass, i could send it to you be mail if you give it o me.
best regard
Patrick

[Dan Walker]

Patrick; After I get the one from Just Radios and it is not readable I will let you know .
Thank you for your interest.
Dan Walker in Calgary

[John Greenland]

Hi,
Have you seen the one that is here ?

https://www.nostalgiaair.org/pdfs/De-Forest-Crosley-Ltd-Canadian/De-Forest-Crosley-Ltd-Canadian-1921.pdf

TTFN
John G. VO1 CAT

[Dan Walker]

Hi John:
Yes I have that schematic. It just is not clear enough to make out the numbers and so forth.
I have ordered one from Just radios.
Thanks
Dan in Calgary
