Hi All, recently acquired a Stromberg Carlson 1061 and am having a hard time finding a good copy of the schematic and parts list. Checked with the usual suspects, Radiomuseum and Pacific TV and they have a small copy that’s almost impossible to read and an incomplete parts list. Unfortunately, someone has had a go at recapping the radio and bailed when it didn’t work. Any help would be appreciated

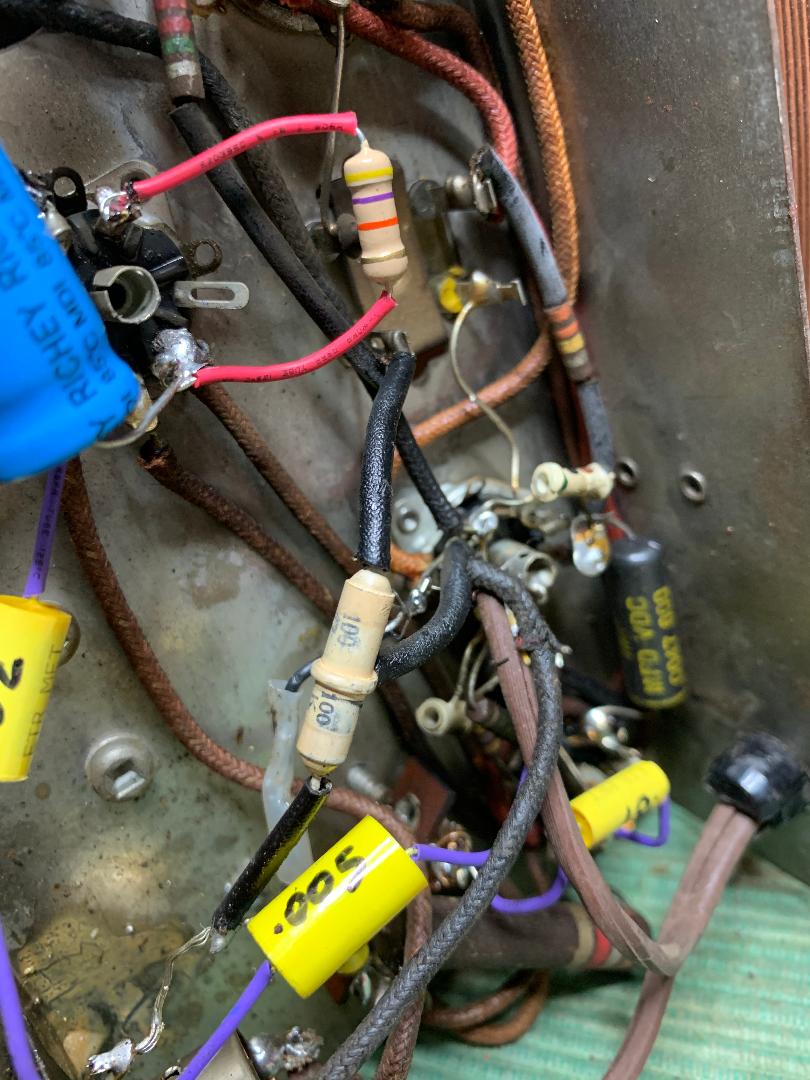

as there is a strange 3 way resistor? and a disconnected one near the volume switch etc.
Gary the strange 3 way thingy is a 47k resister with 2 100 pf caps. if you look at the second if can pin 2 it is the network inside the dashed line, hope that helps. Gord
Thanks a bunch Gordon. I saw the 100 on both ends. Makes perfect sense.
Hi Gary, I sent a clear schematic and parts list to your Email. Enjoy.
Jean, I had given up!!! And a clear parts list FANTASTIC!!!!!! Merci Merci Merci printing out now!
