Help to ID a Rogers Set

[Rick D]

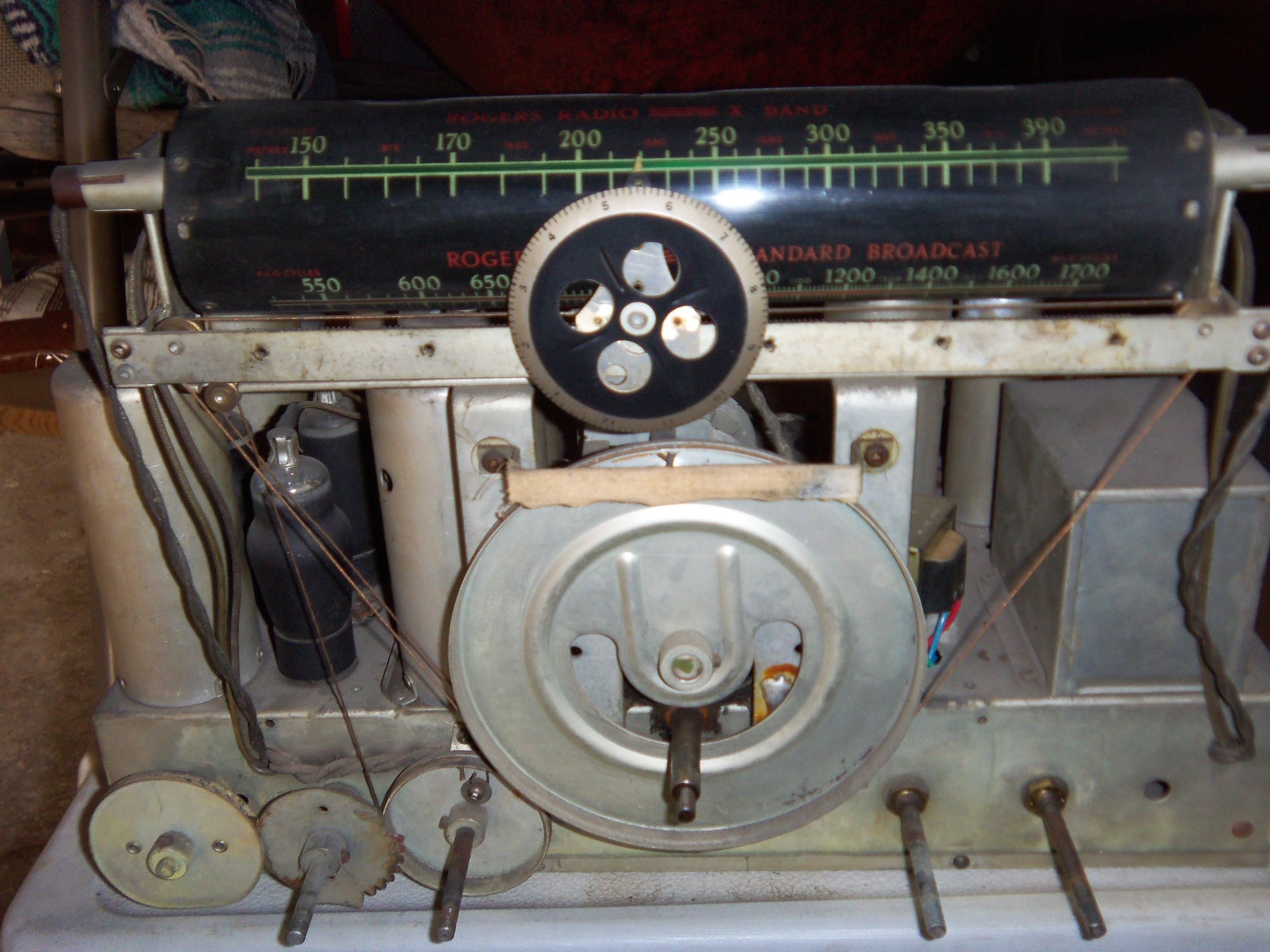

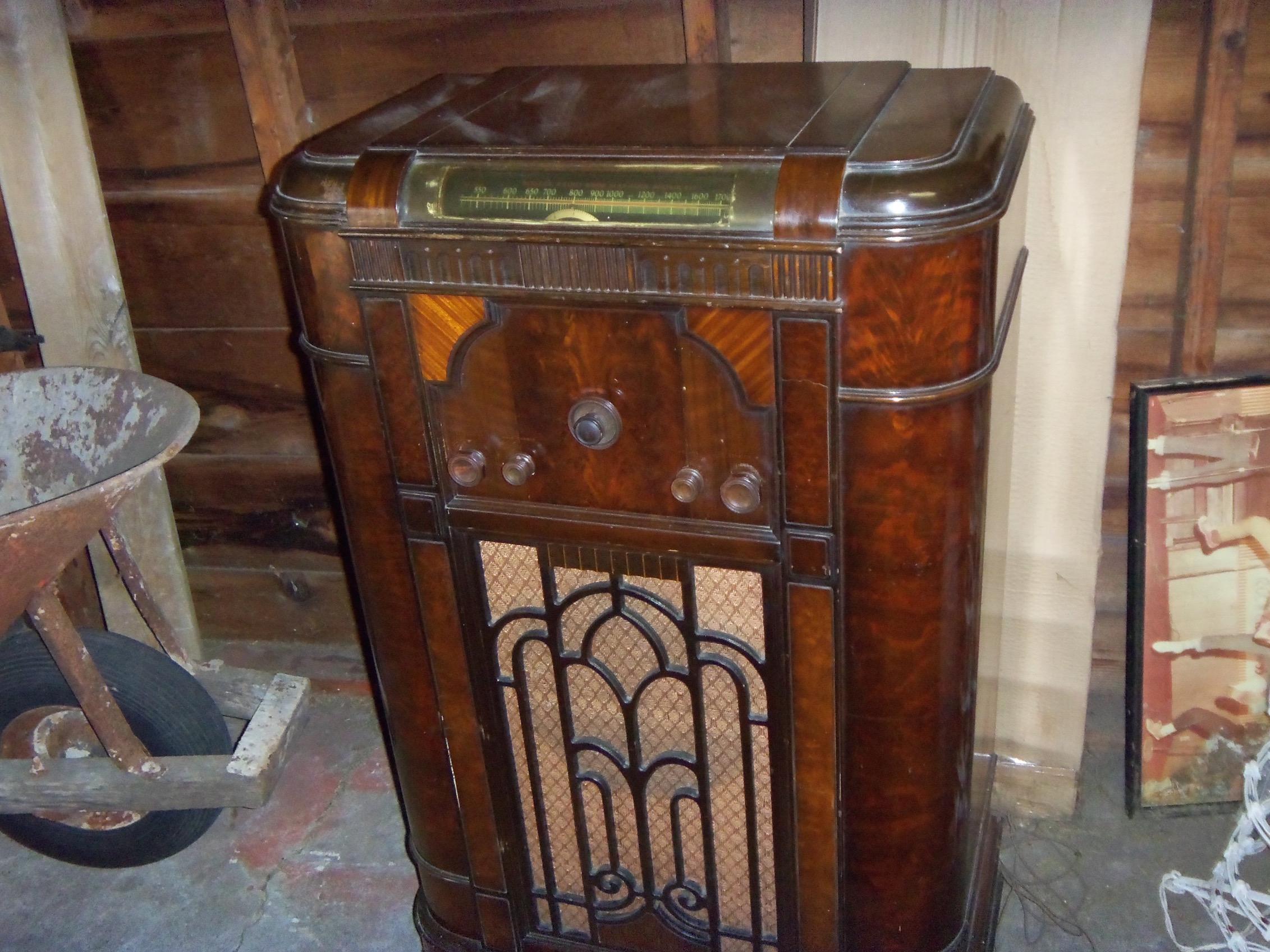

I want to restore a Rogers consol set but I can not find the model # on the chasiss
I do see a number on the cabinet it is 1010 but when I check on Nostalgia Air for the
schematic the 1010 model has the photo of the tube layout it is not quite the same

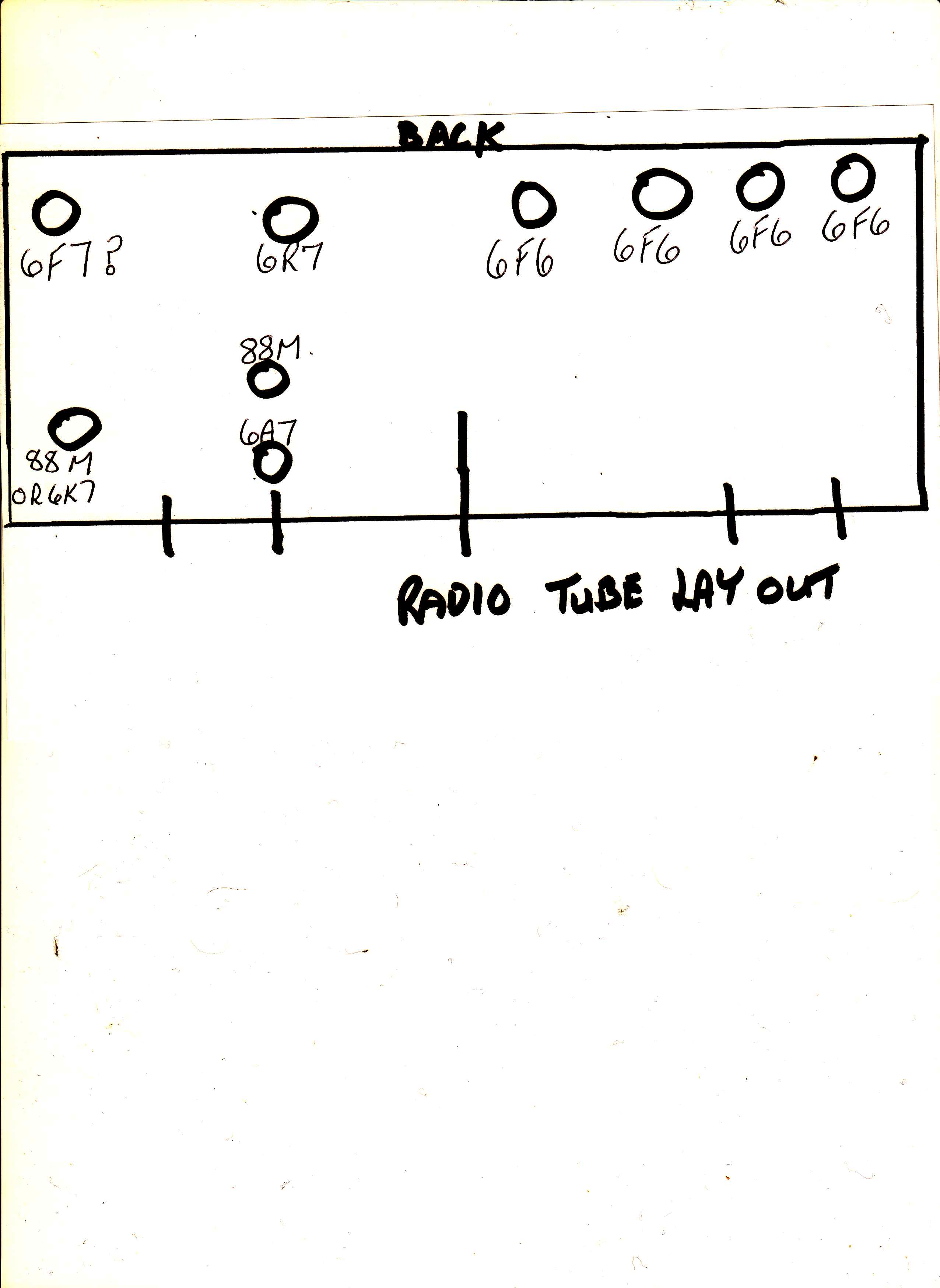

as the chassis tube location on mine ,I have sent in photos and a hand drawn layout

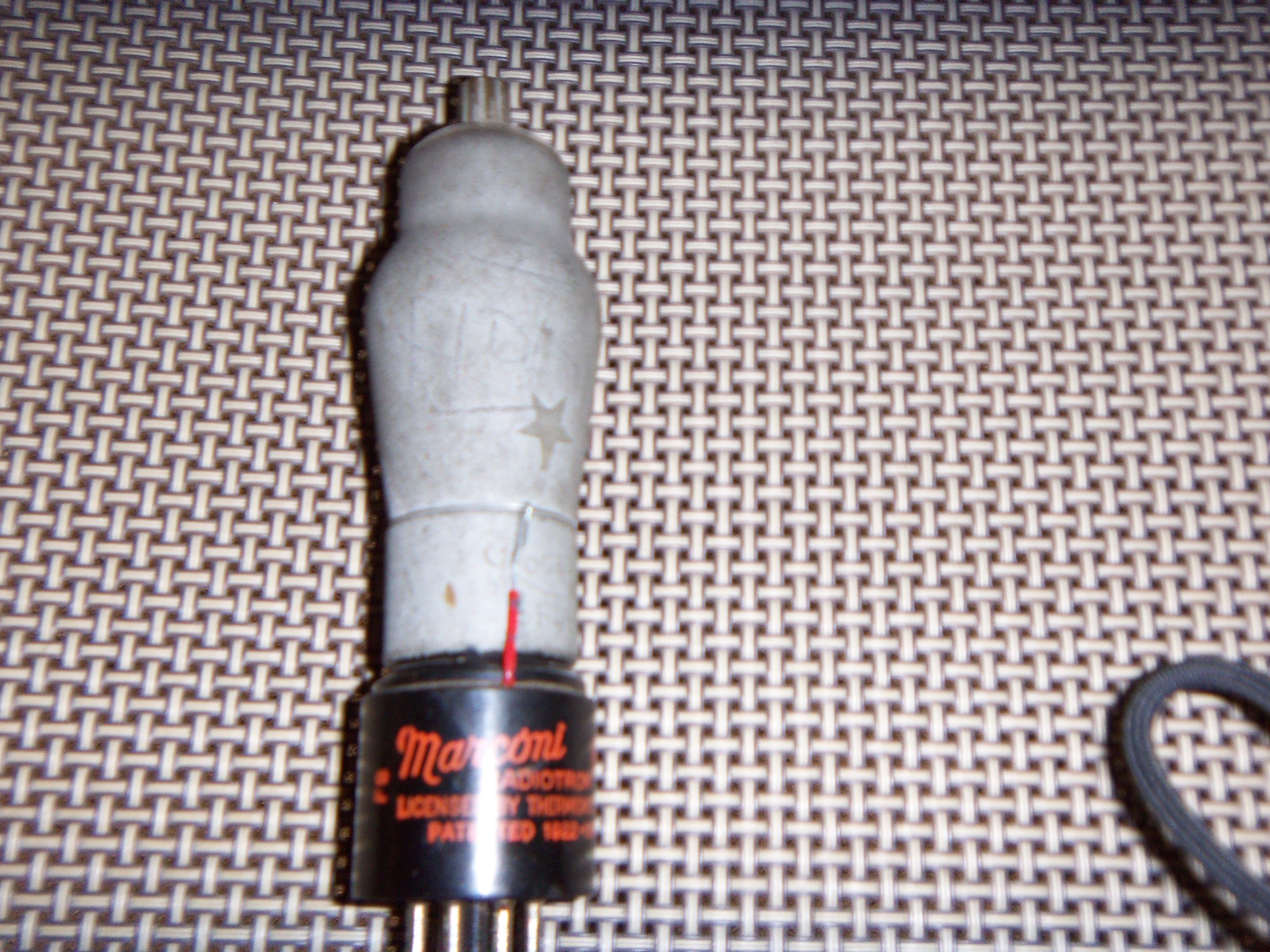

of the tubes in my set the one 6A7 tube has an adopter on the bottom so it may be some

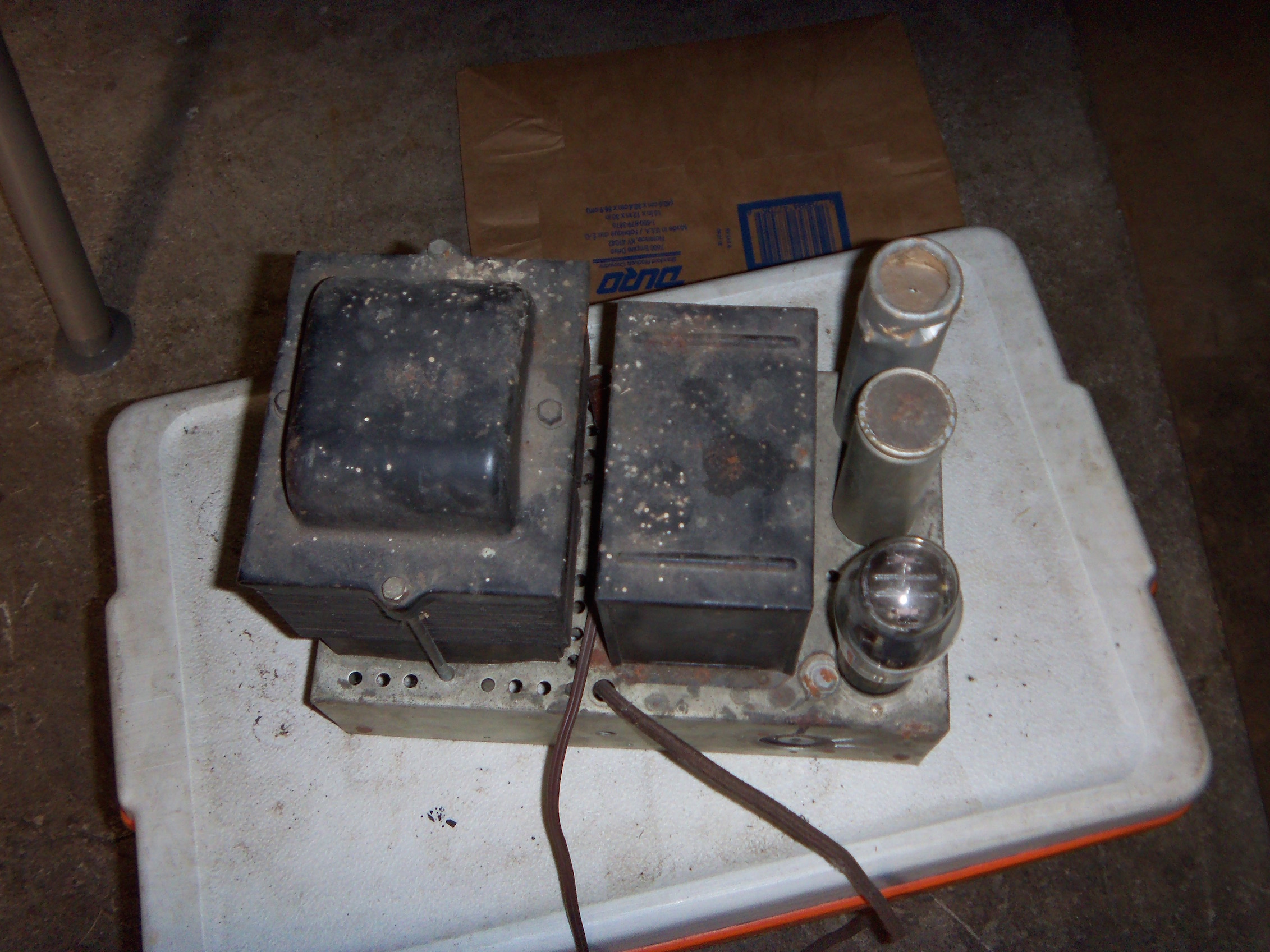

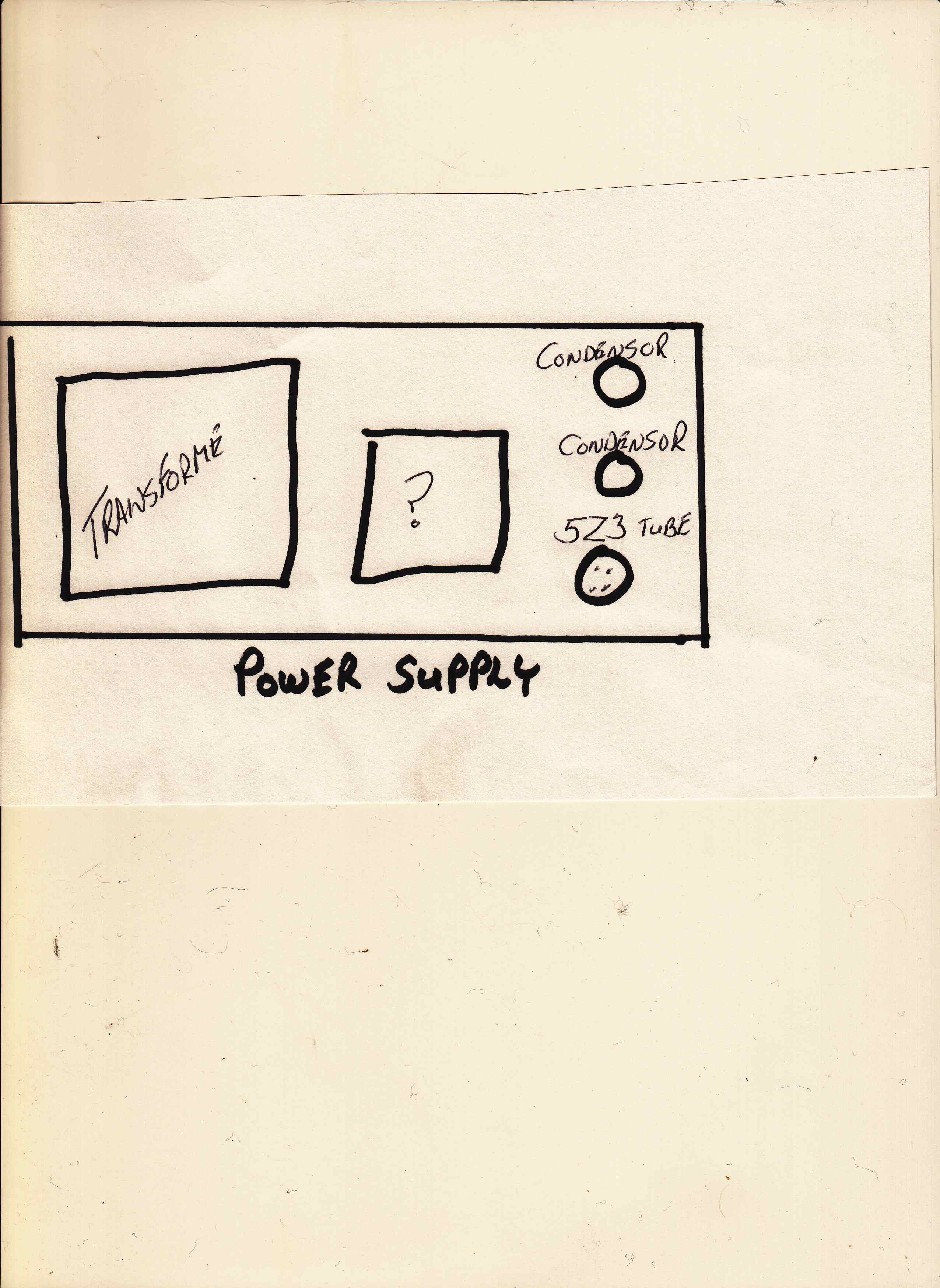

sort of sub ? also there is a drawing of the power supply,I would be very thankful
for any help to get the model number so I can get a schematic,all the very best Rick
Also a photo of the tube with adopter I think is a sub

Attachments:

1.



2.



3.



4.



5.



6.



7.



[Dan Walker]

Hello Rick. I sent you a private message concerning your radio. it is a 1935 Rogers 10-10 and it is called Champlain.
I have several rogers set and have restored all of them, you can do the same. it is a very nice radio .JUST DON’T TURN IT ON.
I was Rogers tenth anniversary and it has ten tubes. If we know where you live maybe there is someone in your area who can help you.
I have the schematics and I can send them to you.. email me Dan Walker,,,,,,,,,,,,,,,

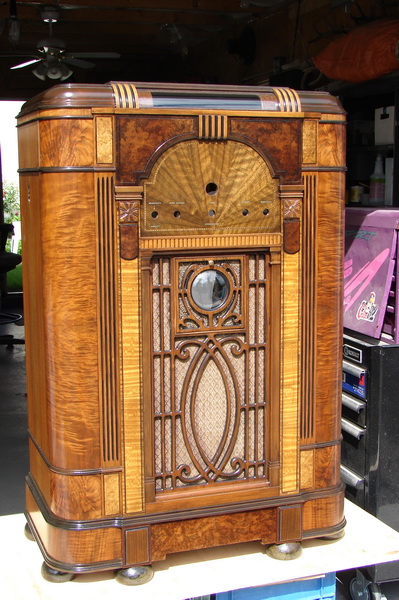

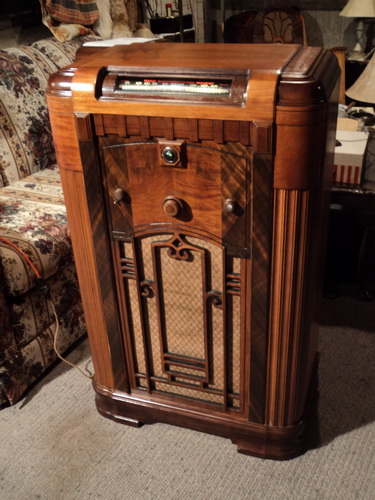

Here a couple of photos of radios like yours

Attachments:

1.



[Dan Walker]

It looks like they didn’t all get loaded

Attachments:

1.



2.



[Rick D]

I Got it
Thanks to the help and much work of Dan Walker I now know the model
number,it is a rogers 10 chassis 21,Dan even got me a crisp clear
schematic and parts list,thanks so much Dan for all your help all
the very best Rick
