August 16, 2015 at 6:12 pm #6966
Rhonda
CVRS Member

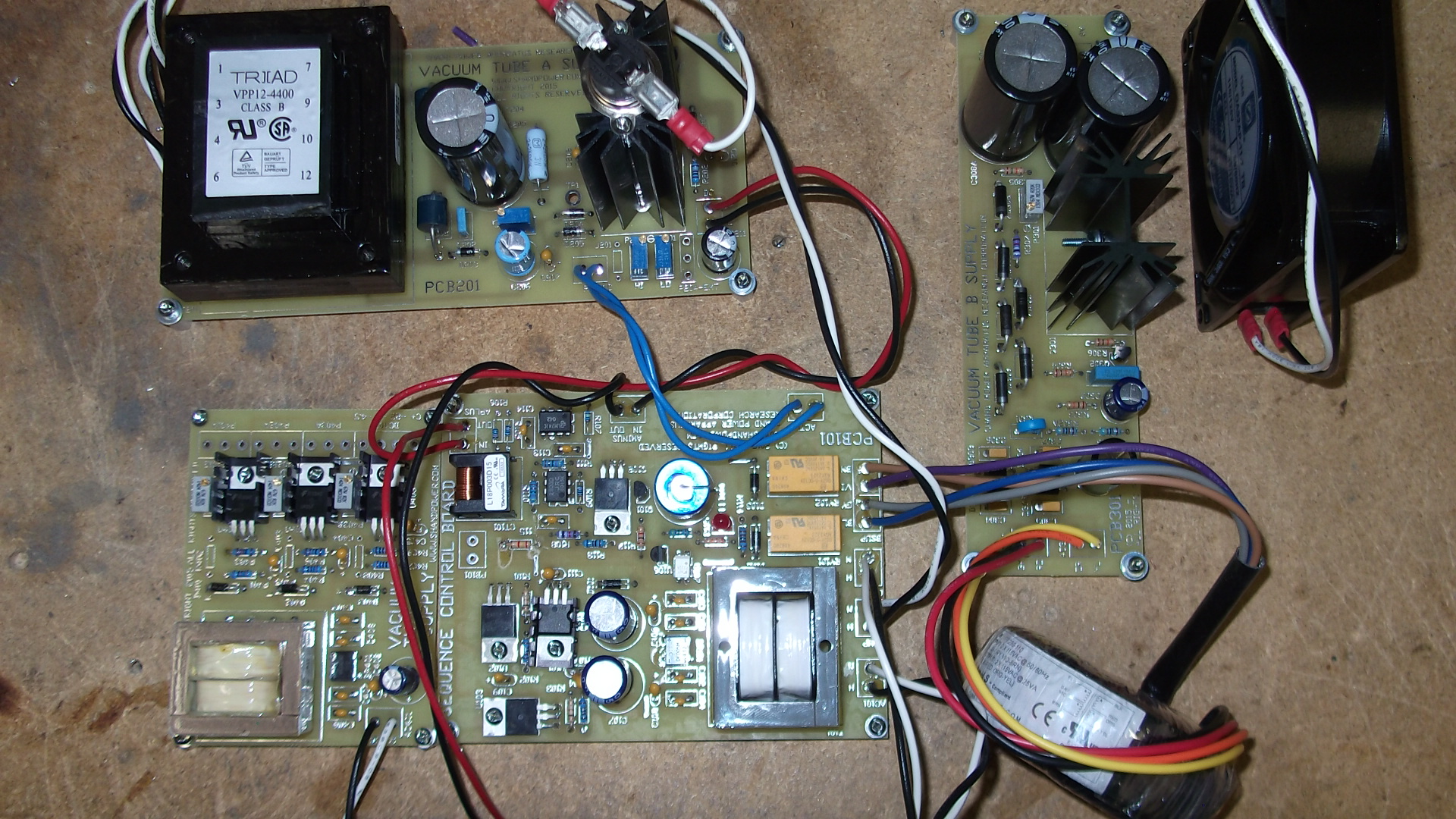

Here is what I have so far:

1. A Supply: 0 – 6.3 V, 3 A – thermal cooling option available and shown

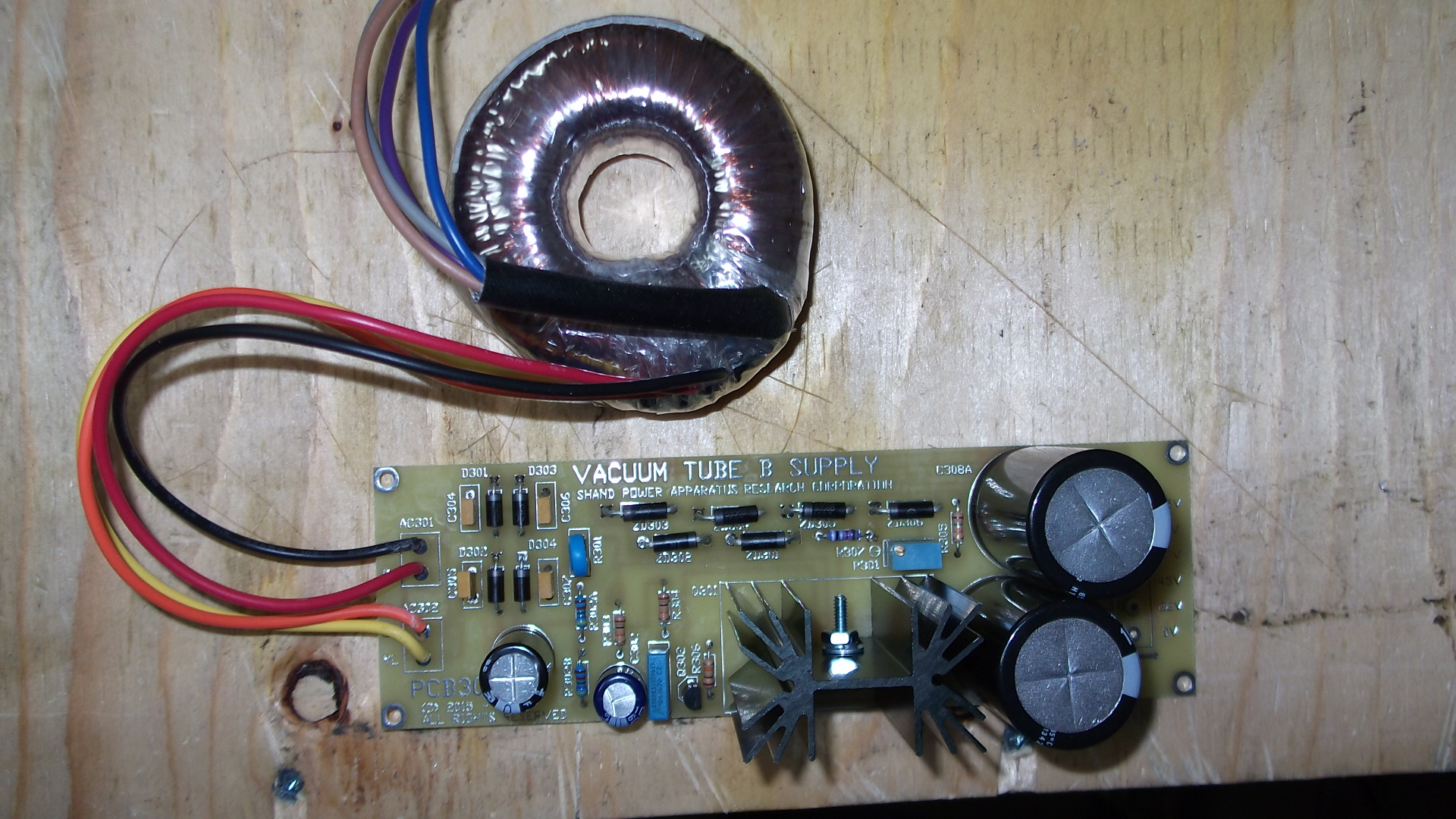

2. B Supply: 22.5, 45, 67, 90 and 135 V, 60 mA maximum

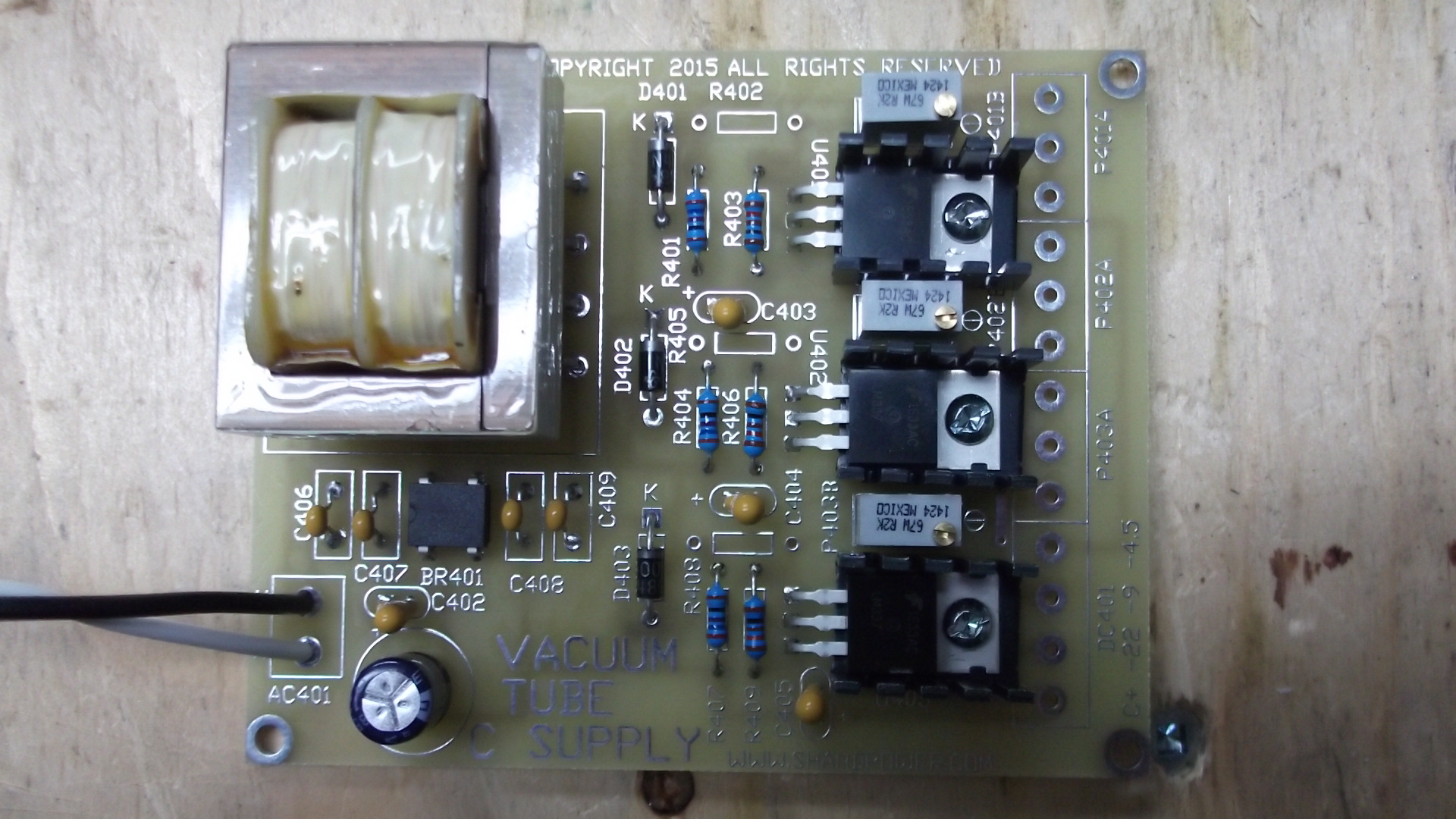

3. C Supply: -4.5, -9, and -22 V

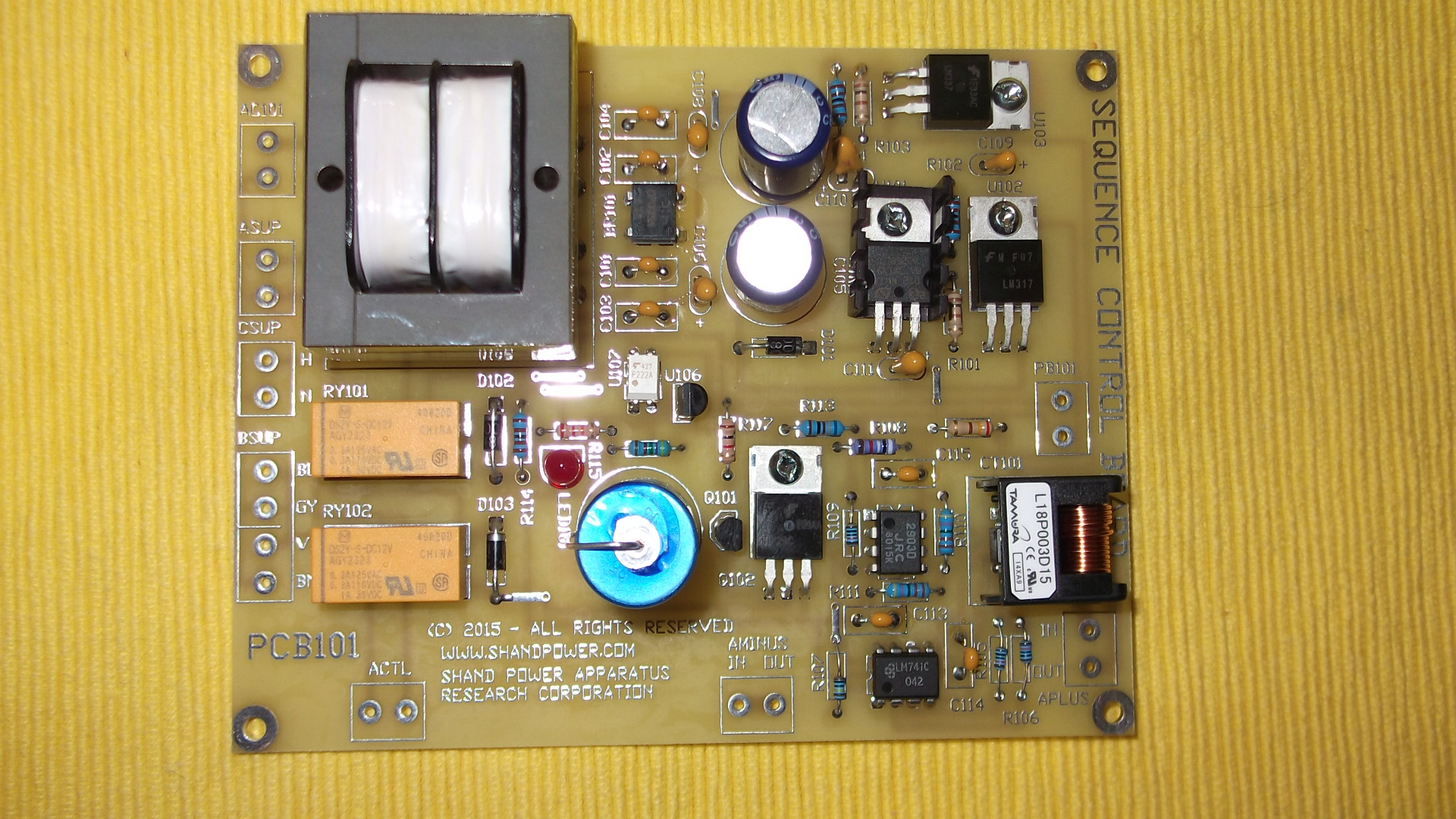

4. Sequence Control Board: soft starts the tubes

More information to follow soon.

Regards,

Gerry Shand

780-910-7031
Attachments:
August 24, 2015 at 11:57 am #6981

Bruce Winter
CVRS Member

Very neat component layout Gerry. Have you costed it out?

August 25, 2015 at 6:50 am #6982

Rhonda
CVRS Member

Hi Bruce:

I am in the process of working that out. Depending on what you want, the costs will vary as I made the system modular. More information to follow as I got a system completely wired and put into a project box. I need to post those photos as well.

Regards,

Gerry

August 28, 2015 at 5:02 am #6983
Rhonda
CVRS Member
Here is one unit finished. Ran for over 24 hours under load without any issues.
Attachments:
1. Inside-the-Case.jpg
2. Front-Panel.jpg
November 16, 2015 at 5:40 am #7125

Rhonda
CVRS Member

And last night I managed to borrow a 4-tube farm radio that uses 1.5 V for the filament and 90 VDC for the plate. Hooked up the power supply and no issues! This is the last acid test for the unit – I am making plans to present it at our local meeting in Edmonton this coming December. And there will be a follow up article for the newsletter. Cheers!!!
